THX-502-L In-Wall Speaker

(# 1066128)

Engineered to bring real cinema sound to the comforts of home without taking up valuable floor space, the Klipsch THX® Ultra2 In-Wall speakers offer the ultimate performance in a hidden solution loudspeaker.

Caractéristiques :

  • Haut-parleur à compression avec membrane en titane de 1 pouce couplé à un pavillon 90 carré 90° x Tractrix®°
  • Double boomer à membrane en fibre de verre de 5,25 pouces
  • Homologuées THX® Select 2
  • Son de qualité cinéma
  • Fiabilité d'installation maximale
  • Flexibilité infinie
  • Grille bord à bord

Select your state to locate the nearest Custom Install Rep Firm that you can contact. The Rep Firm will route your request to the proper dealer/installer.

CI Reps for State:

The following contacts represent Klipsch Custom Install reps in your selected state ().

Click here to send an email to, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.


System Type2-way In-wall
Frequency Response46Hz-20kHz +/-3dB
Power Handling100W/400W
Recommended Amp Power150W
Sensitivity92dB @ 2.83V / 1m
Impedance8 Ohms switchable
High Frequency Driver1” (2.5cm) Titanium diaphragm compression driver mated to 90° x 90° square Tractrix® Horn
High Frequency Crossover2100Hz & 1200Hz
Low Frequency DriverDual 5,25” (13.3cm) high-output, fiberglass cone woofers
Speaker EnclosureMDF & Aluminum motorboard /ABS frame
Enclosure TypeInfinite baffle, front flush with wall
Hole dimensions (mm/in, HxWxD)16,5” (41.9cm) H x 6,5” (16.5cm) W
Dimensions17,98” (459.69mm) H x 8,11” (205.99mm) W
Mounting Depth3,49” (88.65mm)
Weight9.6lbs (4.4kg)
FinishWhite (paintable)
Installation KitIK-502-W
Cutout Dimensions16,42” (417.07mm) L X 6,57” (166.88mm) W


Delivers effortless dynamic range and brings superior sound to larger areas thanks to its highly regarded THX Select2 certification. It not only delivers consistent compelling audio to larger-sized rooms it also brings real cinema sound to the comforts of home without taking up any floor space.


Employs high output fiberglass woofers for powerful basses impact, while a 1-inch titanium tweeter mated to a new symmetrical pattern 90 x 90 square Tractrix® Horn generates flat in-room frequency response with high efficiency and low distortion.


This in-wall speaker also consistently delivers thrilling, realistic sound, whether it's installed horizontally or vertically. It features sure-grip mounting dogs that provide even pressure against drywall for long- term installation reliability, and includes a paintable grille that blends in perfectly with any decor.


Timbre matched to all of our THX-certified products, so you can mix and match to create an unbeatable, discreet stéréo or home theater system that's just right for you.

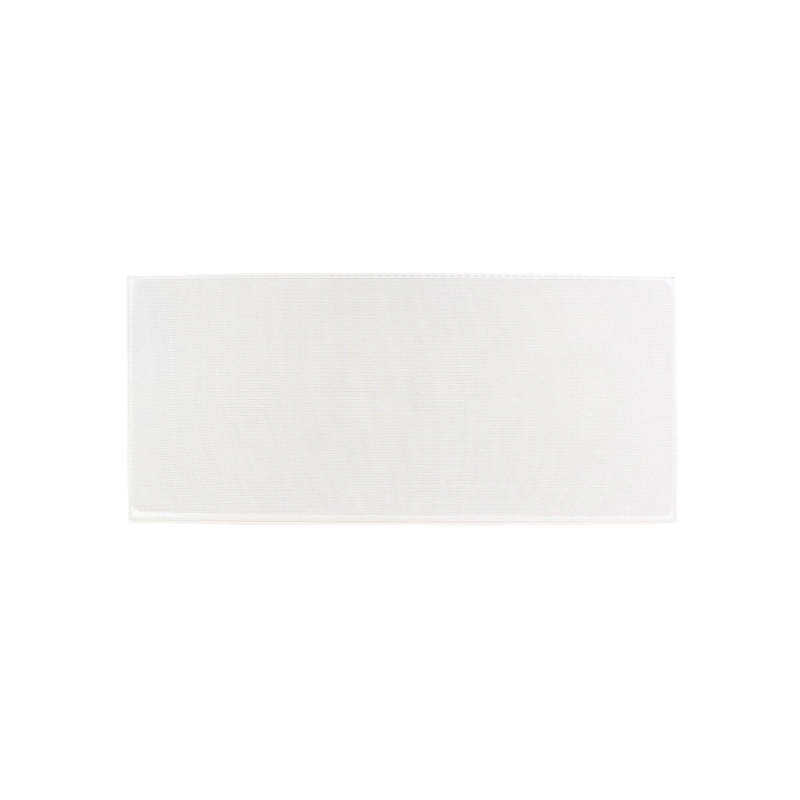

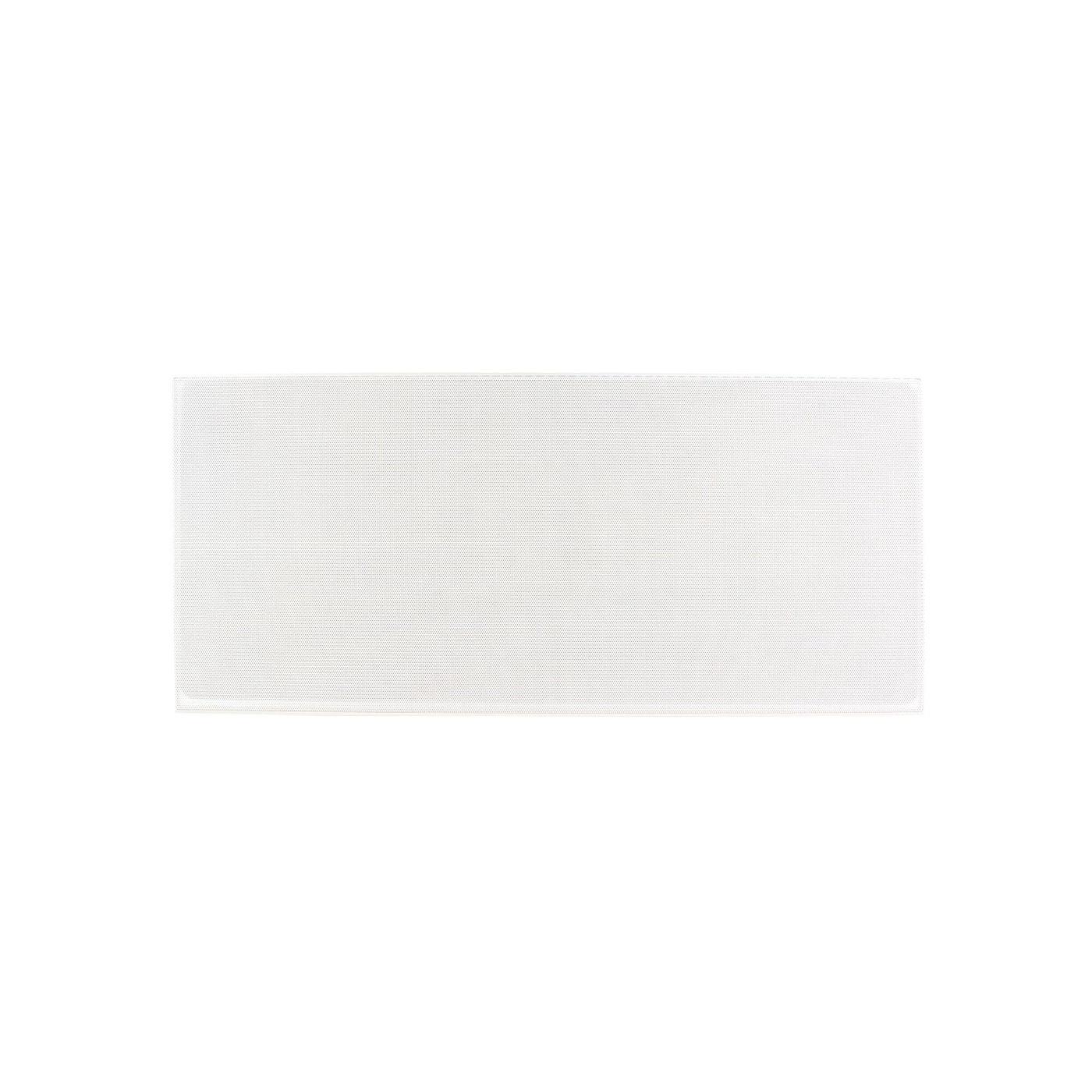

Covering the whole of the speaker makes painting the product both simpler and quicker. Premium Neodynium magnets make it easy to install and remove and ensure a secure and flush fit without any moving parts. The flat grill allows better harmonization with today's modern interior designs and disappear into the background, enabling sound to take center stage.
